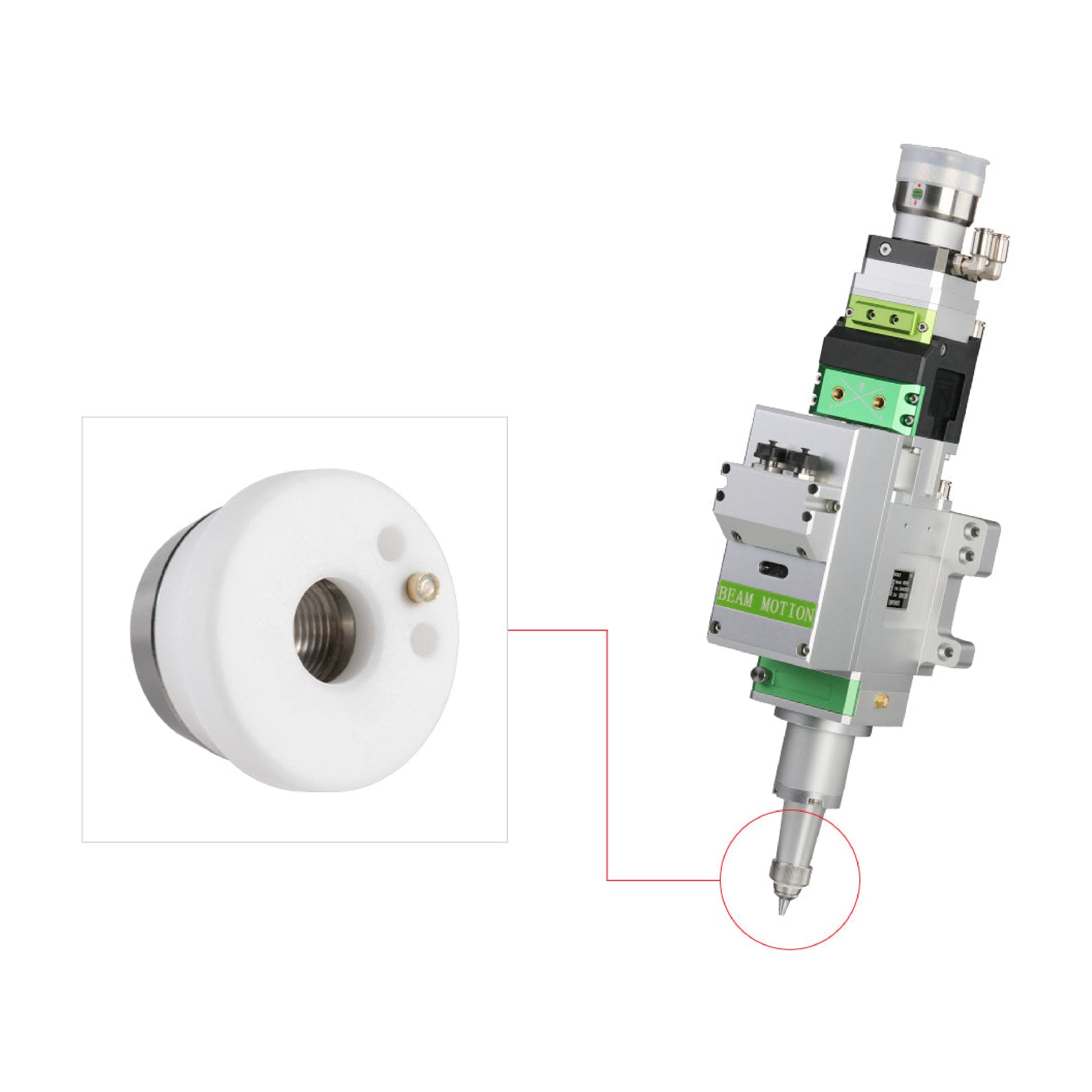

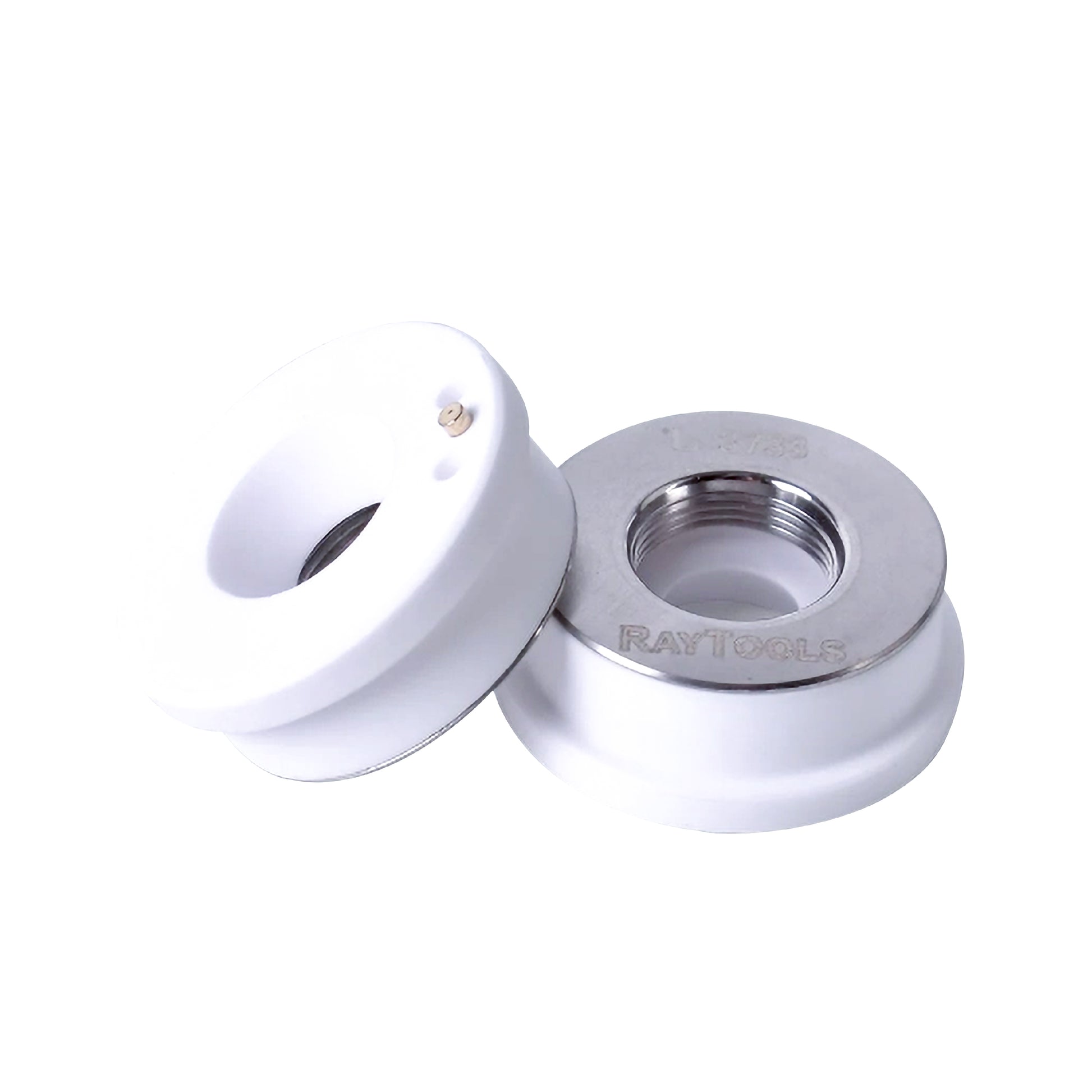

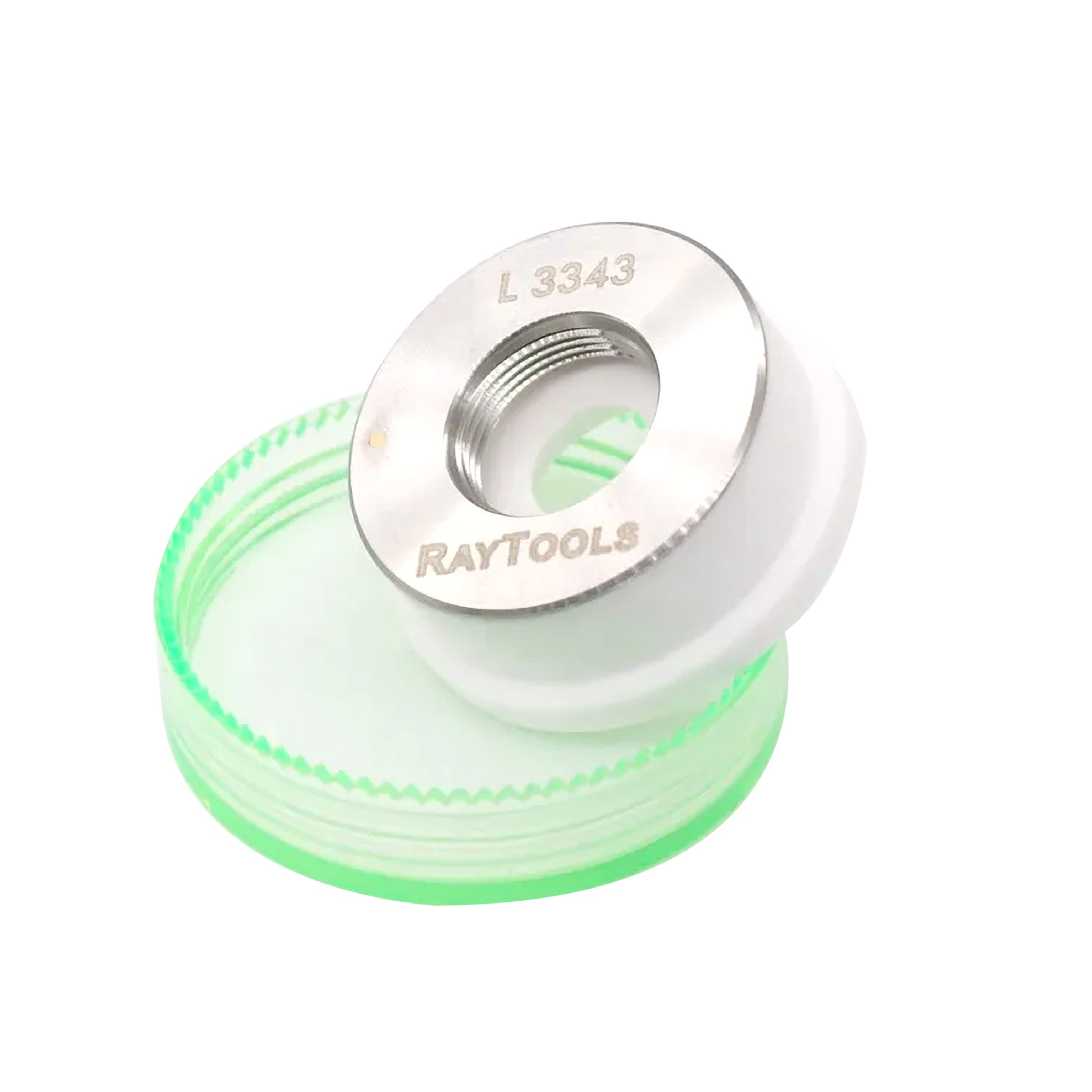

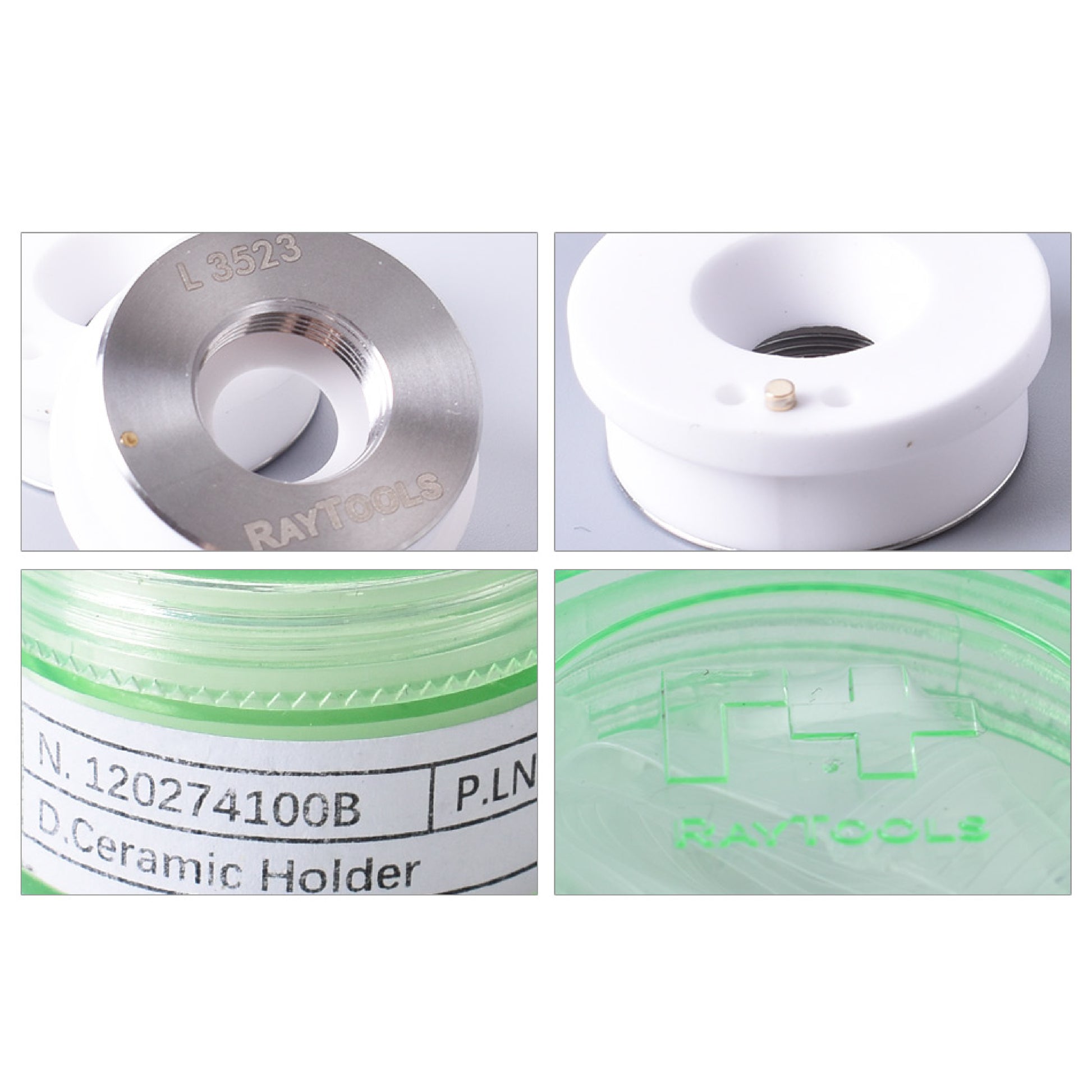

RayTools Ceramic Ring for Fiber Laser Cutting Heads Nozzle Holder

RayTools provides high-quality, original ceramic components for fiber laser cutting heads, designed for precision and durability in high-performance environments. These components are compatible with a wide range of RayTools laser cutting heads and are essential for maintaining optimal performance.

Specifications:

• Brand: RayTools
• Material: High-grade ceramic for durability and thermal stability
• Application: Compatible with RayTools and related cutting heads

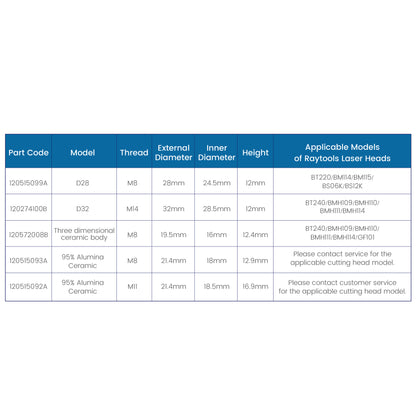

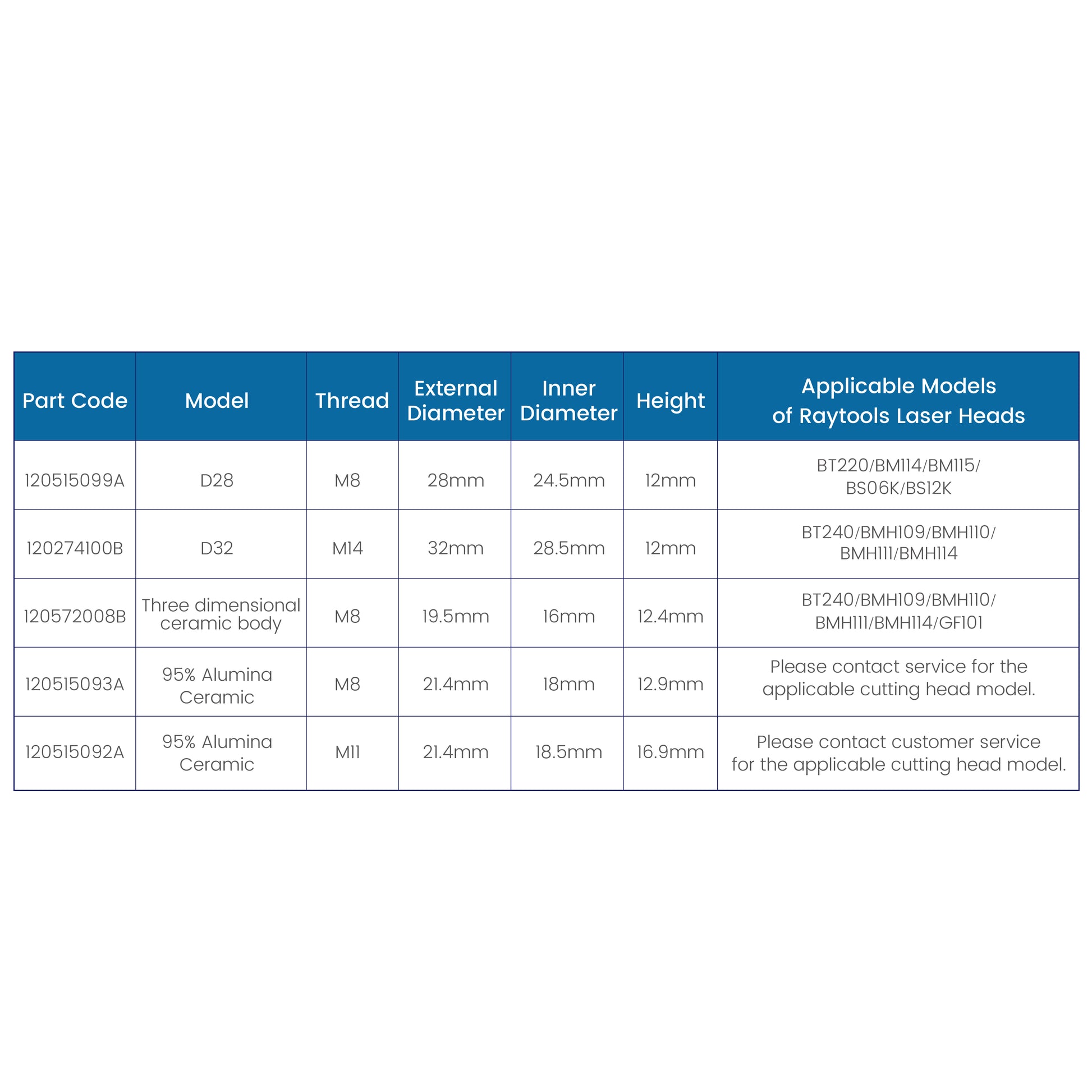

Variants

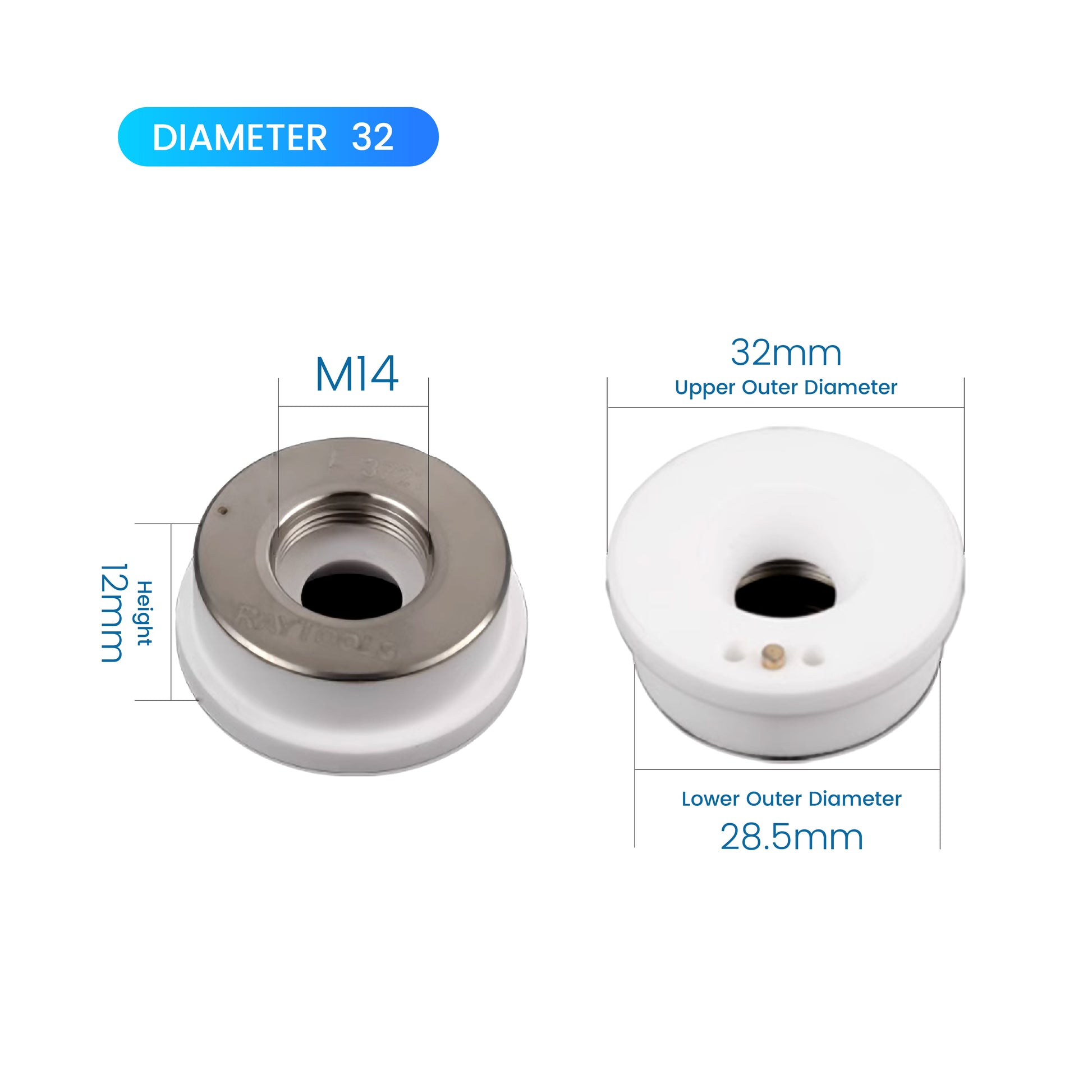

1. RayTools Ceramic Ring(D28 M11)

   • SKU: A02990025
   • Outer Diameter: 32mm
   • Inner Diameter: 28.5mm
   • Height: 12mm
   • Thread: M14
   • Compatible Cutting Heads: RayTools BT240, BMH109, BMH110, BMH111, BMH114

2. RayTools 3D Ceramic Body(D19.5)

   • SKU: A06050508
   • Outer Diameter: 19.5mm
   • Inner Diameter: 16mm
   • Height: 12.4mm
   • Thread: M8
   • Compatible Cutting Heads: RayTools BT240, BMH109, BMH110, BMH111, BMH114, GF101

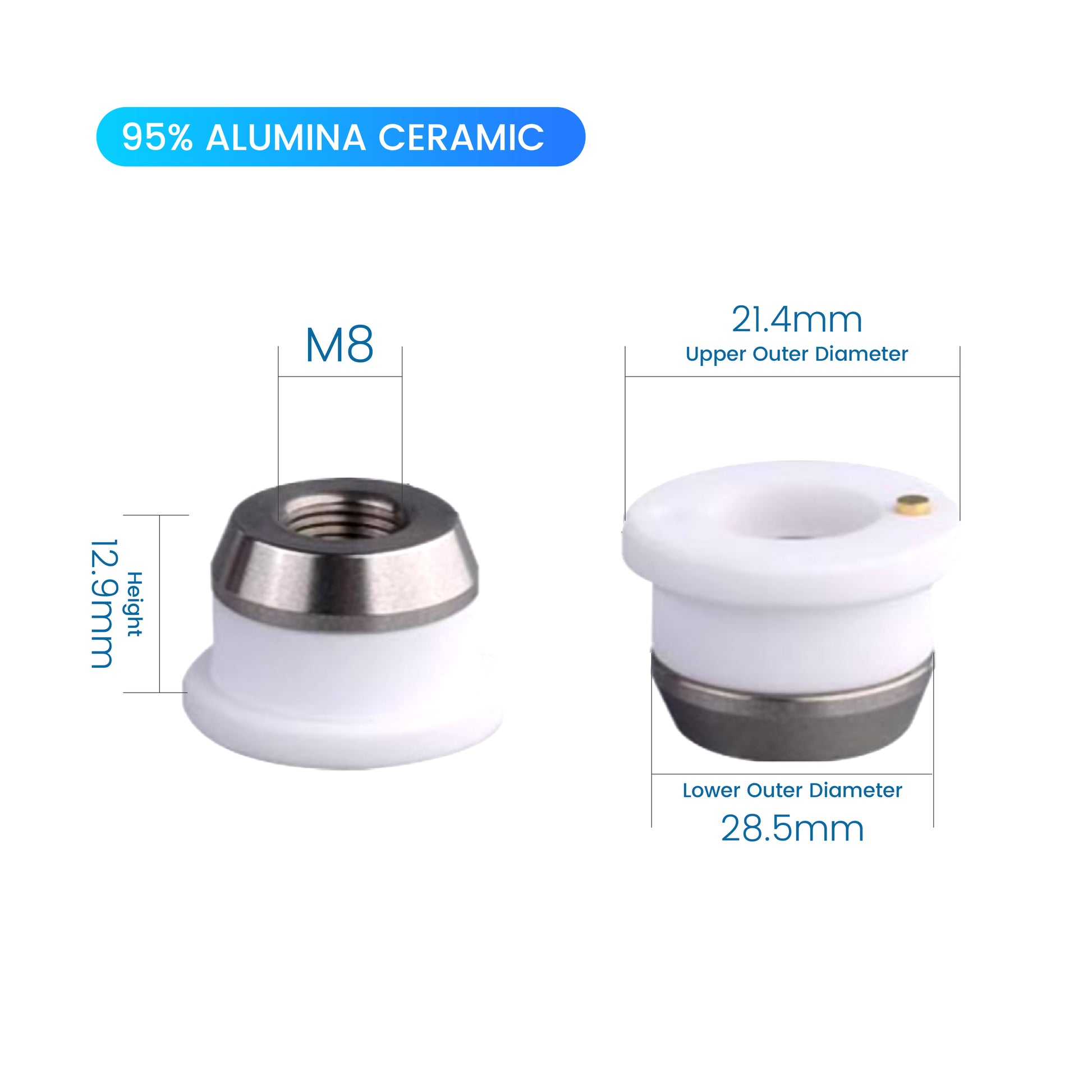

3. RayTools Ceramic Body (D21.4 M8)

   • SKU: A06050653
   • Outer Diameter: 21.4mm
   • Inner Diameter: 18mm
   • Height: 12.9mm
   • Thread: M8
   • Compatible Cutting Heads: RayTools BT220, BD04K, BD08K

4. RayTools Ceramic Body (D32 M14）

   • SKU: A09010605
   • Outer Diameter: 28mm
   • Inner Diameter: 24.5mm
   • Height: 11.7mm
   • Thread: M11
   • Compatible Cutting Heads: RayTools BM110, BM114, BM115, BM04K, BM06K, BS06K
